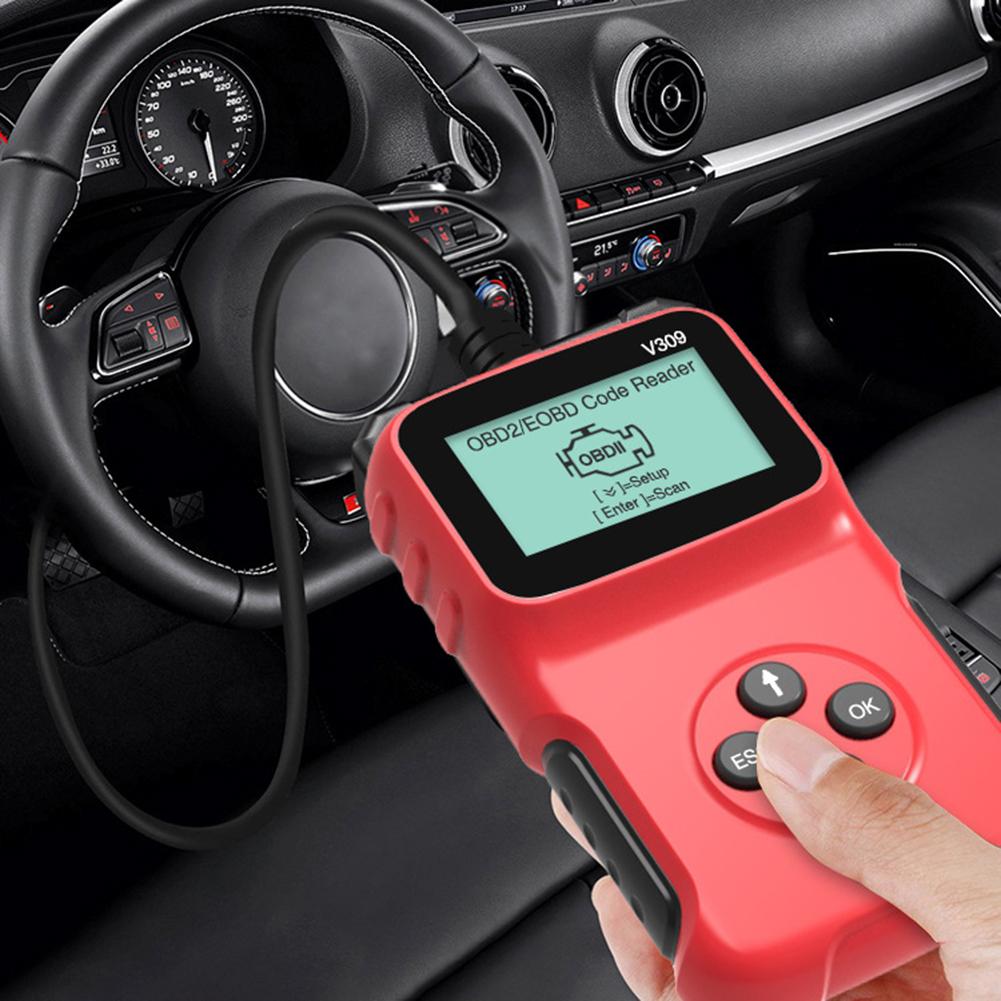

OBDII V309 Car Code Reader the

Universal OBDII Diagnostic Tool Scanner Code Reader Car Code Scan for All 1996 and Newer OBDII Compliant Vehicles V309

Overview:

Works on most 1996 and newer vehicles, read freeze frame data which shows engine condition.

Features:

1. Read the error diagnosis code-general and manufacturer-specific, and display their meaning (the database has more than 3000 common code definitions)

2. Clear the error code and turn off the MIL (‘Check Engine’ indicator)

3. Display current sensor data, including:

Engine speed per minute (RPM)

Calculated load value

Coolant temperature

Fuel system status

Speed

Throttle absolute position

With short-term fuel status

Associated oxygen detection voltage

Fuel system status

Fuel pressure

Fuel consumption monitoring

Data graph display and logging

Freeze frame data

Continuous and discontinuous oxygen detection results

4.Support 5 languages

Communication protocol:

SAE J1850 PWM(41.6 Kbaud)

SAE J1850 VPM(10.4 Kbaud)

ISO 9141-2 (5 baud init,10.4 Kbaud)

ISO 14230-4 KWP (5 baud init,10.4 Kbaud)

ISO 14230-4 KWP (fast init,10.4 Kbaud)

ISO 14230-4 CAN (11bit ID,500 Kbaud)

ISO 14230-4 CAN (29bit ID,500 Kbaud)

ISO 14230-4 CAN (11bit ID,250 Kbaud)

ISO 14230-4 CAN (29bit ID,250 Kbaud

Specifications:

Model: V309

Working voltage: 9-16v

Working current: 80mA

Operating environment: – 30-70 ° C

Storage temperature: – 30-80 ° C

Package Size: 20 * 13 * 6cm / 7.87 * 5.12 * 2.36in

Package Weight: 200g / 0.44lb
