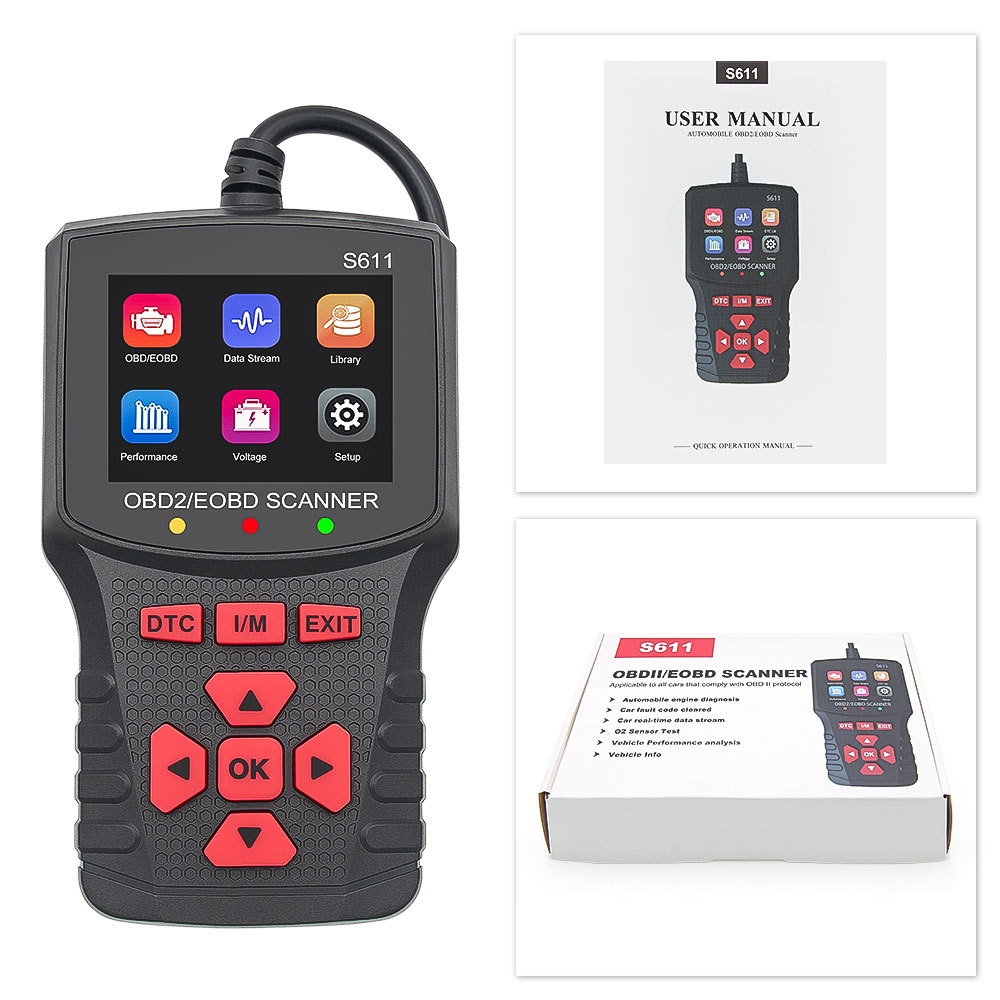

Main functions

1.Support nine OBD ll/EOBD standard protocols

2.Read the automobile engine fault code

3.Clear engine fault code

4.Vehicle fault freeze frame

5.l/M ready state

6.Vehicle information

7.Automobile data flow

8.Battery voltage reading

9.data flow curve

10.Oxygen sensor test

11.EVAP test

12.Vehicle performation test

Product parameters

Working voltage: 9~16V

Working current: 92~111mA

Operating environment:-30~70C

Storage temperature:-30~70C

Dimensions:168*89*24mm

Eight languages: English, German, Italian, Dutch, French,Spanish, Chinese, Russian.

Support Agreement:

1. SAE J1850 PWM (41.6Kbaud)

2.SAE J1850 VPW(10.4Kbaud)

3.IS09141-2(5 baud init, 10.4Kbaud)

4.ISO14230-4 KWP(5 baud init, 10.4 Kbaud)

5.ISO14230-4 KWP(fast init, 10.4 Kbaud)

6.ISO15765-4 CAN (11bit ID, 500 Kbaud)

7.ISO15765-4 CAN (29bit ID, 500 Kbaud)

8.ISO15765-4 CAN (1lbit ID, 250 Kbaud)

9.ISO15765-4 CAN (29bit ID, 250 Kbaud)
