Jdiag M300 handheld motorcycle diagnostic tool

Product Description

M300 Function:

🏍️Read system information

🏍️Read data streams

🏍️Read fault codes

🏍️Clear fault codes

🏍️Freeze fault code

🏍️Battery life detection

🏍️CO idle adjustment

🏍️Troubleshooting guide

🏍️Print test results

🏍️ Upgrade online

🏍️ ABS system test

Support Moto Brand Lists:

BMW
Ducati
Harley
BAJAJ
CFMOTO
APRILIA
HONDA
KAWASAKI
KTM
OBD II
ADIVA
AEON
ARCTIC CAT
BENELLI
BRIXTON
BOMBARDIER
HARTFORD
HYOSUNG
KYMCO
MODENAS
PGO
PIAGGIO
ENFIELD
SUZUKI
SYM
TRIUMPH
VESPA
YAMAHA
YIBEN

Features:

✅Wide Application: Support more than 70 motorcycle, such as: For ADIVA, For ARCTIC CAT, For BMW, For DUCATI, For HYOSUNG, For KYMCO, For PIAGGIO, For SYM, For AEON, For BAJAJ, For BRP, For HARTFORO, For KAWA, For PGO, For Royal Enfield, For TRIUMPH, For APRILIA, For BENELLI, For BRIXTON, For HONDA, For KT, For YAMAHA, For SUZUKI, For VESPA, etc.

✅5.0-inch Large Display: The M300 is a new generation of handheld motorcycle diagnostic tool with a large 5.0” display and a rich, clear interface that covers virtually all of the manufacturer’s diagnostic functions. Users can choose their own theme color, support data screenshots and image playback.

✅Dual System Testing: Motorcycle diagnostic instrument +battery tester.

🏆1.It allows technicians to trace (injectors, ignition, coils, fuel pumps, etc.),

🏆2.perform factory service procedures such as resetting service lights,

🏆3. adjustments (CO Trimmer) adjusting the throttle position sensor (TPS), setting automatic adaptive parameters, performing idle adjustments.

🏆4..Multiple battery test modes, Start detection, Battery waveform, Standard Testing, Quick test, Charging test.

🏆5.Support Software Upgrade and Printing: Support software online upgrade and print diagnostic report.

🏆6.M300 supports printer, picture view, data logging and playback, battery detection, error report feedback and other functions.

🏆7.With fast running speed, smooth interface operation and excellent data processing capability, it can help technicians diagnose problems and perform repairs faster.

🏆8.Multiple Language: Support English, German, French, Spanish, Portuguese, Traditional Chinese, Cambodian, Thai, Turkish, Vietnamese, Indonesian, Japanese, Korean.

Specifications:

❇️Item name: Motorcycle Diagnostic Tester
❇️Model: M300
❇️Material: ABS
❇️Color: Green
❇️Screen size: 5 inch TFT true color display
❇️Connect and update: Support
❇️Operating voltage: 9-18V
❇️Operating temperature: 0 to 60°C(32to 140°F)
❇️Storage temperature: -40 to 70°C(-40 to 158°F)
❇️Item size: 25*12.4*4.5cm/9.84*4.88*1.77in
❇️Weight of the whole set: 2.62kg/5.77lb

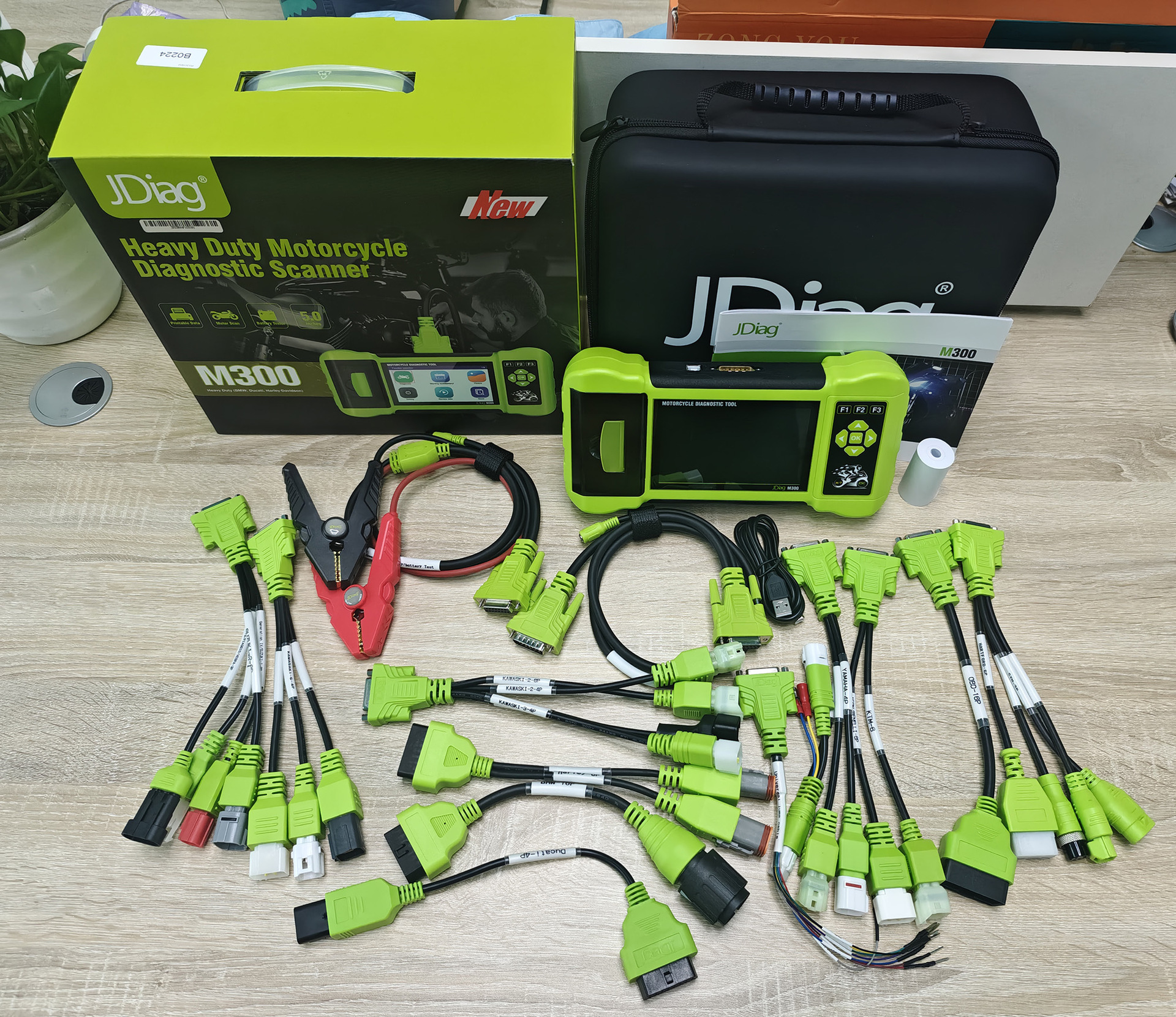

Package:

1x M300 Host.
1x 13 adapted cables.
1x USB cable.
1x Zipper bag.
1xPckage box.
1x Users manual.

Note:

Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 10-30mm
