ELM327 USBFTDIWithSwitchFor FordDiagnosticCable
Technical Details:
1.Latest ELM327 version for greater for F.o.r.d compatibility

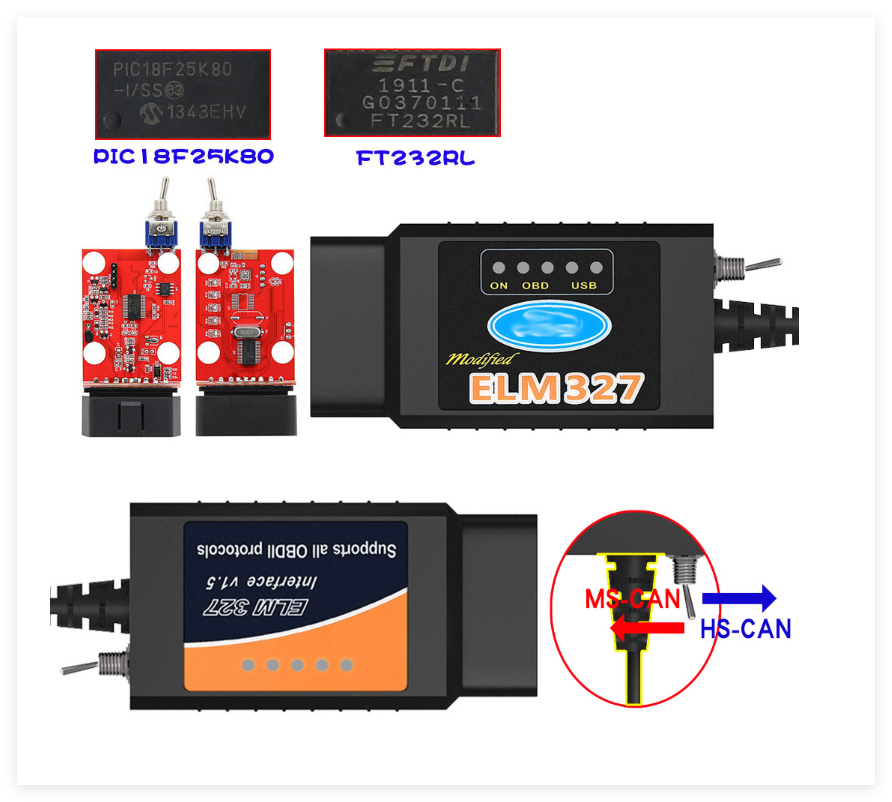

2.Manufactured modification to include a switch to connect to different CAN buses
3.Designed for FORScan software
4.Compatible with software venders: FORScan, Elmconfig (Just support Baud rate:34800,pls check before place order), FF2 and FoCCCus, plus more
MS CAN bus and HS CAN bus support
5.Drivers and instructions included
Product Introduction:
One ELM327 OBDII OBD2 USB with switch. Designed for communicating with for F.o.r.d, for Mazda, for Lincoln and for Mercury vehicles. With this cable and the one of the supported software vendors you can detected modules which are not visible for regular OBD2 scanners.This includes showing you trouble codes, PIDs, running tests and services procedures which are never displayed by other OBD2 scanners and a standard ELM327.
Basic Features:
Reset fault /trouble codes / parameter ids (PIDs)
Change car configuration data
Run tests
Services procedures
Program certain models
Pin Configurations:
Switch outside: HS CAN – Occupies pins 6 and 14
Switch inside: MS CAN – Occupies pins 3 and 11
Supported Software:
FORScan
Elmconfig(Just support Baud rate:34800,pls check before place order)
FoCCCus
FF2
Plus more
Hidden function Support car list:
2006-2016 classical for Focus
2012-2015 new for Focus
2013-2015 for Kuga
Modified EML:
Please note that many for F.o.r.d and for Mazda models (approximately since 2003-2004) are equipped with MS CAN bus, in addition to the regular HS CAN bus. In contrast to HS CAN bus, MS CAN bus is not supported by the stock ELM327, because MS CAN is a manufacturer-specific solution and located on non-OBD2 pins. This ELM327 has been modified to allow it to implement the MS CAN bus.ELM327 supports HS CAN from the stock, because for Fo-rd HS CAN completely matches to the OBD2 standards. It occupies pins 6 and 14. MS CAN bus occupies pins 3 and 11.
Supported Vehicles:
All for F-ord, for Mazda, for Lincoln, for Mercury vehicles that can be addressed using an ELM via an OBDII connector.
ELM327 USB Switch Support Car List:
For F-ORD
For MAZDA
For BMW
For VW
For GM
For AUDI
For CHEVY
For TOYOTA
For LEXUS
For Lincoln
For MERCEDES
For Mercury
For HYUNDAI
For KIA
For MITSUBISHI
For NISSAN
For SUZUKI
For JAGUAR
For LAND ROVER
For CHRYSLER
For HONDA
AND SO MUCH MORE!
Other Details:
Cables fully tested on supported model before shipping.
No responsibility can be accepted for any damage caused by the lead.
