2026.02 NEW MDI2 Diagnostic Interface for GM Support CAN FD/ DoIP with GDS2, Tech2win Offline Software
Master GM Diagnostics with the Next-Gen MDI2 Interface
The GM MDI2 is the ultimate dealer-level diagnostic tool designed for professional technicians. Fully supporting the latest CAN FD and DoIP protocols, it ensures seamless communication with new Global A and Global B platforms (including 2021+ models like the Escalade and Silverado).
Key Benefits:
1. Complete Coverage: Works with GDS2 (2010-2026) and Tech2win (1996-2013) for full vehicle system access.
2. Offline Capability: Includes pre-installed offline software—no constant internet connection required for core diagnostics.
3. High-Speed Performance: Optimized processing power for lightning-fast ECU flashing and J2534 Pass-Thru programming.
4. Versatile Connectivity: Supports high-speed USB, Ethernet, and stable WiFi for a cable-free workshop experience.
NEW GM MDI2 Automobile Diagnostic Interface supports CAN FD and DoIP protocol
NEW MDI 2 Global Diagnostic Interface Tool
• Increased processing power for quicker data transfers
• Performs Pass-Thru programming on all GM Vehicles built since 1996 andand into the future
• New wireless connection option eliminates Access Point or IT support
• Compact design for easy handling and storageNEXT GENERATION BENEFITS
The GM MDI 2 is the Global Diagnostic Interface tool for both current and future GM vehicles. Itreplaces the MDI introduced in 2007 and offers a compact communication module with increasedprocessing power and security to offer faster transfer of data between a vehicle’s onboard ECUnetwork with an auxiliary CAN bus.
NEW MDI2 Highlights:
1. Support CAN FD and DOIP protocol
2. Compatibility with Techline connect (TLC) software
3. Support GM motors Global A/B platform architecture,cover GM from 1996 to the present
4. Support GDS2, DPS, and Tech2win offiline software
5. Support SAE J2534 Pass thru ISO2290 protocol for GM motors
6. Support ECU, PCM, ABS, VTA and other automotive electronic system programming operation and immobilicer matching
7. Free maintenance for 1 year
8. Upgrade firmware online for free,Device Manager free download
9. Three connection modes
USB Connection Mode: Connect via the USB cable.
AP Connection (Wifi connection directly) Mode: Connects to a computer via the built-in WIFI of MDI2, similar to Bluetooth connection.
Station Connection Mode(WLAN Connection): Connect the MDI2 device and the computer to the same local area network.
AP connection mode and station connection mode can be switched through the device button.
NEW MDI2 Features:
1.Supports all GMC, Chevrolet, Buick, Cadillac, and Opel models from 1996 to the present
2.Supports SAE J2534 Pass-Thru, CAN FD, DoIP, UART, Class2, KWP2000, GMLAN(CAN) protocol
3.Supports key matching, offline and online module programming, diagnosis
4.Supports CAN FD/DoIP module diagnosis and programming
5.Supports GM global A platform models and global B platform models
6.Supports Pass-Thru programming program TIS2WEB-SPS, compatible with all functions of MDI generation
Note: If you want to use the online programming function, you need to have an account. We do not provide online programming accounts.

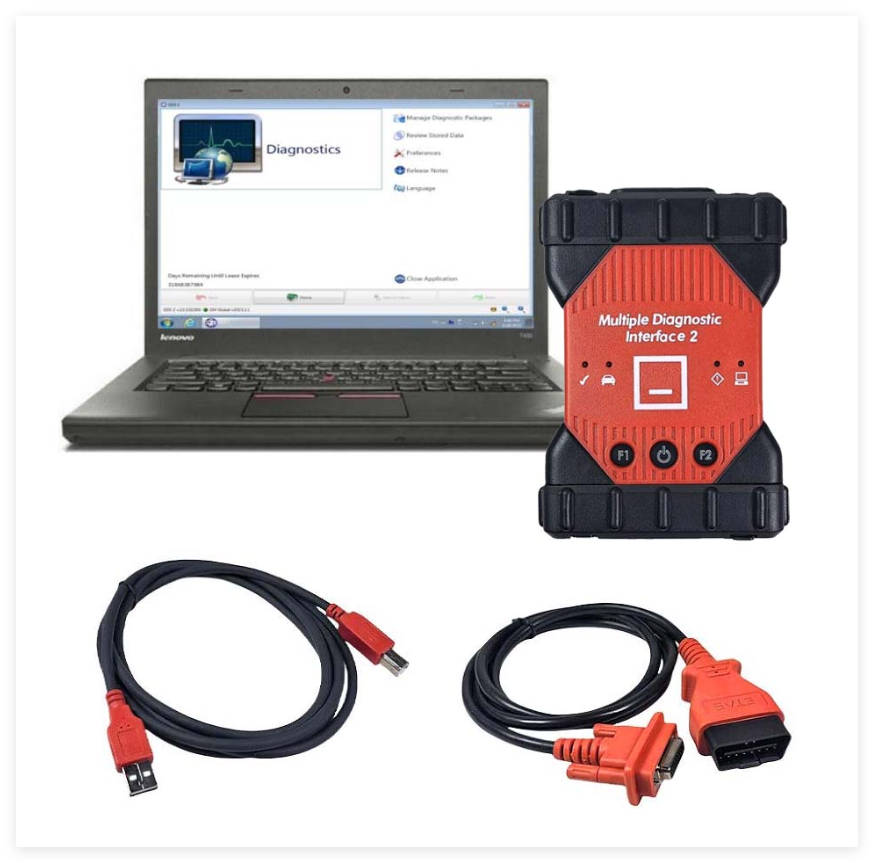

Package Includes:
1pc x 2026.02 NEW MDI2
1PC x HDD (GDS2, Tech2win, DPS Offline Software has been installed on the HDD hard drive)
1PC x Second Hand Laptop Lenovo T450 Laptop (All software activated. All system ready to use)
